Substation Earthing Grid Design According to IEEE 80

Author: Md. Rabiul Hasan Mazumder | March 29, 2026

Earthing systems are a critical component of electrical substations. A properly designed grounding grid ensures that fault currents are safely dissipated into the earth while maintaining safe voltage levels for personnel and equipment.

Why Grounding Design Is Important

• Protects personnel from dangerous touch voltage.
• Reduces step voltage on the ground surface.
• Provides a safe path for fault current.
• Protects equipment during fault conditions.

Engineering Principles

The objective of grounding system design is to create a low resistance path between electrical equipment and earth while limiting voltage gradients on the ground surface.

Typical Design Procedure

• Soil resistivity measurement
• Maximum fault current calculation
• Grounding grid layout design
• Step and touch voltage analysis
• Grounding conductor sizing

Relevant Standards

• IEEE 80 – Guide for Safety in AC Substation Grounding
• IEEE 81 – Guide for Measuring Earth Resistivity

Soil Resistivity Measurement Using Wenner Method

Author: Md. Rabiul Hasan Mazumder | March 29, 2026

Soil resistivity measurement is an essential step in the design of grounding systems. The electrical properties of soil directly influence the performance of earthing electrodes and grounding grids.

Importance of Soil Resistivity

• Determines grounding grid resistance
• Influences step and touch voltage levels
• Helps optimize grounding system cost
• Identifies layered soil structures

Wenner Four-Pin Method

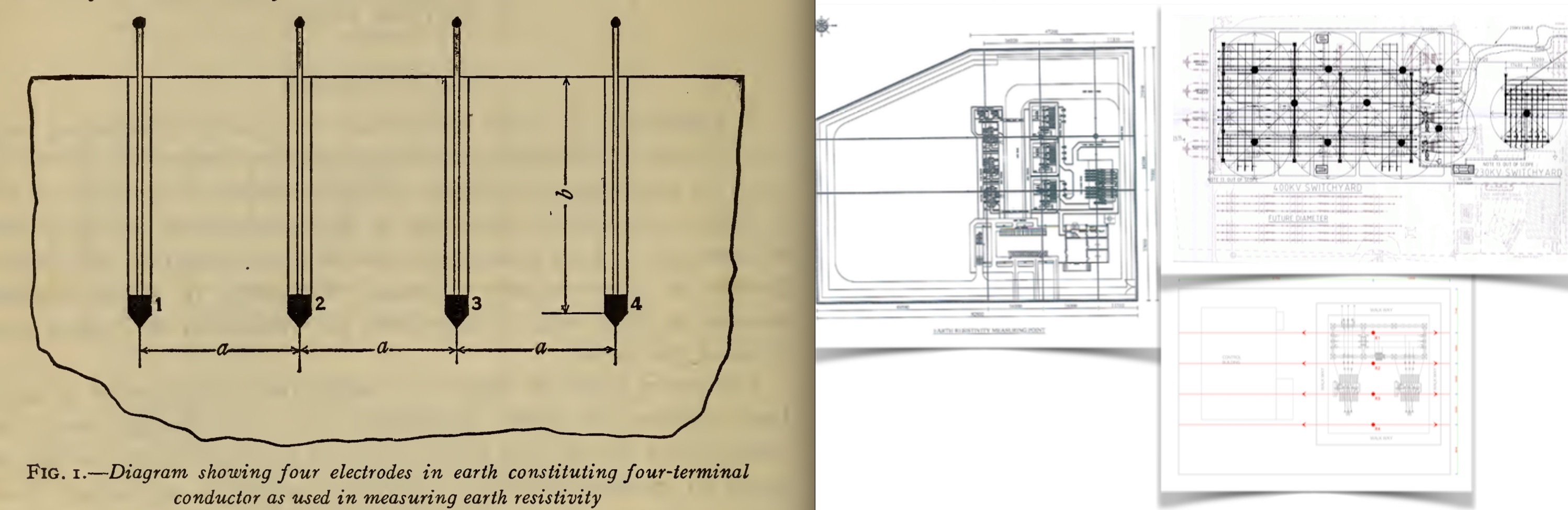

The Wenner method is widely used for soil resistivity testing. Four equally spaced probes are inserted in the soil and current is injected through the outer probes while voltage is measured between the inner probes.

Testing Procedure

• Place four probes in a straight line
• Maintain equal spacing between probes
• Inject current through outer probes
• Measure voltage between inner probes

Relevant Standards

• IEEE 81 – Guide for Measuring Earth Resistivity
• IEC 62561 – Lightning Protection Components

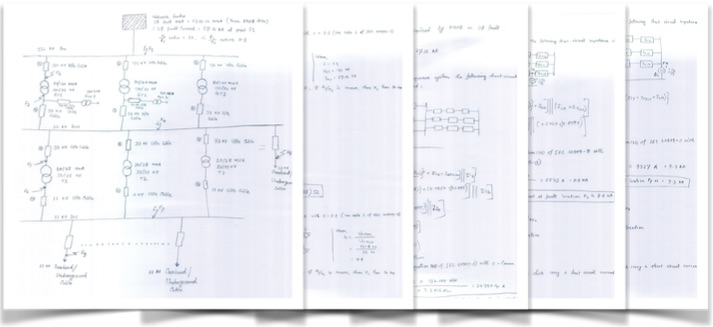

Short Circuit Analysis According to IEC 60909

Author: Md. Rabiul Hasan Mazumder | March 30, 2026

Short circuit analysis determines the magnitude of fault currents that may occur in electrical power systems. These calculations are necessary for selecting protective devices and verifying equipment ratings.

Why Short Circuit Studies Are Required

• Equipment rating verification
• Protection system design
• Switchgear selection
• Safety evaluation

Engineering Principles

Fault current magnitude depends on system impedance, network configuration and generator contribution.

Typical Calculation Steps

• Collection of system data
• Development of impedance model
• Calculation of symmetrical short circuit current
• Evaluation of peak fault current

Relevant Standards

• IEC 60909 – Short Circuit Currents in Three Phase Systems
• IEEE C37 – Power System Fault Calculations

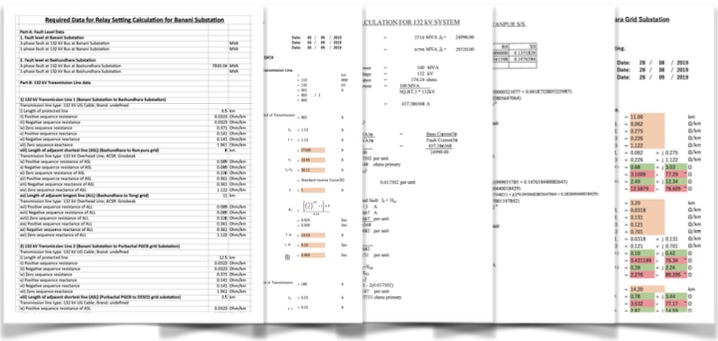

Relay Coordination Study in Power Systems

Author: Md. Rabiul Hasan Mazumder | March 30, 2026

Protection systems in electrical networks are designed to detect abnormal operating conditions and isolate the faulty section of the system. Relay coordination ensures that protective devices operate in the correct sequence.

Importance of Relay Coordination

• Prevents unnecessary power outages
• Ensures selective fault isolation
• Protects electrical equipment
• Improves system reliability

Typical Study Procedure

• System modeling
• Short circuit calculation
• Selection of relay characteristics
• Time-current coordination analysis

Relevant Standards

• IEC 60255 – Measuring Relays and Protection Equipment
• IEEE C37 – Power System Protection Standards

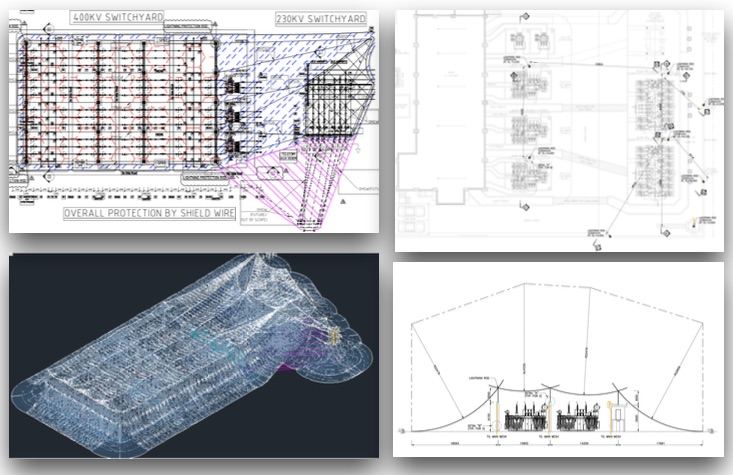

Lightning Protection System Design

Author: Md. Rabiul Hasan Mazumder | March 31, 2026

Lightning protection systems are designed to protect structures and electrical equipment from lightning strikes by safely conducting lightning currents to the ground.

Purpose of Lightning Protection

• Protect buildings and infrastructure
• Prevent fire hazards
• Protect electrical equipment
• Reduce system downtime

Main Components

• Air terminals (lightning rods)
• Down conductors
• Grounding system
• Bonding connections

Relevant Standards

• IEC 62305 – Lightning Protection Standard
• NFPA 780 – Standard for Lightning Protection Systems

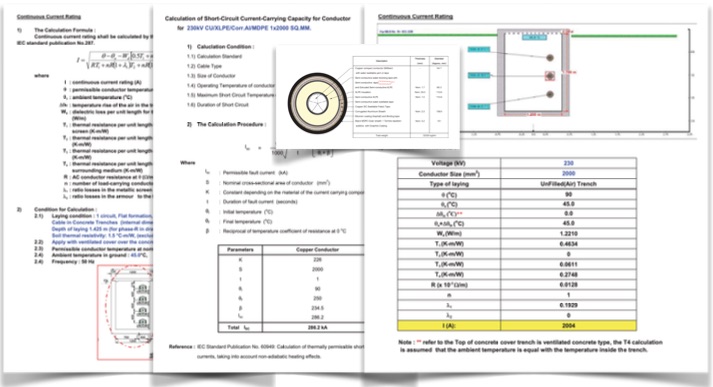

Electrical Cable Sizing According to IEC Standards

Author: Md. Rabiul Hasan Mazumder | April 1, 2026

Proper cable sizing is essential for safe and efficient electrical installations. Engineers must ensure that cables can safely carry the expected load current without overheating.

Factors Affecting Cable Selection

• Load current
• Voltage drop limits
• Short circuit rating
• Installation conditions

Typical Cable Selection Process

• Calculate load current
• Check current carrying capacity
• Evaluate voltage drop
• Verify short circuit withstand capability

Relevant Standards

• IEC 60364 – Electrical Installations
• IEC 60287 – Electric Cable Current Rating

Voltage Drop Calculation in Electrical Systems

Author: Md. Rabiul Hasan Mazumder | April 1, 2026

Voltage drop is the reduction of voltage along an electrical conductor caused by resistance and reactance. Excessive voltage drop can reduce equipment performance.

Why Voltage Drop Matters

• Maintains proper equipment voltage
• Improves energy efficiency
• Prevents overheating of cables
• Ensures system reliability

Typical Calculation Steps

• Determine load current
• Identify cable parameters
• Calculate voltage drop
• Compare with allowable limits

Relevant Standards

• IEC 60364 – Electrical Installations
• IEEE 141 – Electrical Power Distribution

Transformer Protection Philosophy

Author: Md. Rabiul Hasan Mazumder | April 2, 2026

Power transformers are critical components of electrical power systems. Proper protection schemes are required to detect internal faults and isolate the transformer quickly.

Common Transformer Faults

• Internal winding faults
• Overheating
• Overcurrent conditions
• Insulation failure

Typical Protection Methods

• Differential protection
• Overcurrent protection
• Buchholz relay protection
• Temperature protection

Relevant Standards

• IEC 60076 – Power Transformers
• IEEE C57 – Transformer Protection Guides

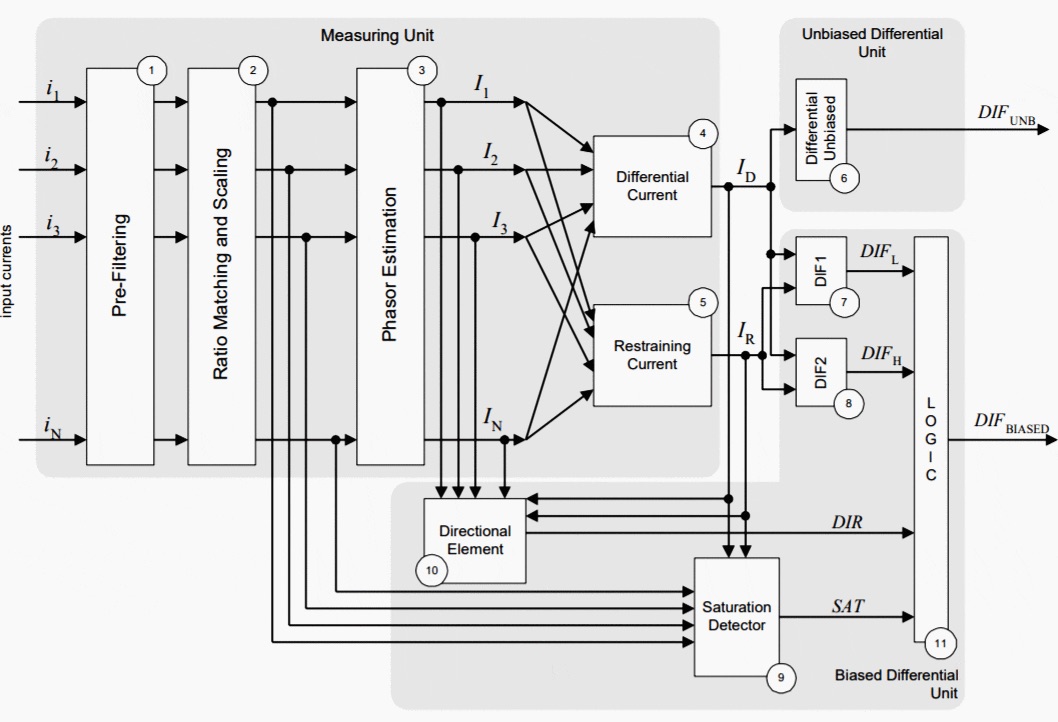

Busbar Protection in Electrical Substations

Author: Md. Rabiul Hasan Mazumder | April 2, 2026

Busbars are central nodes in substations that connect multiple feeders, transformers and generators. Faults in busbars can affect large parts of the power system.

Importance of Busbar Protection

• Protects critical substation components
• Minimizes outage impact
• Ensures fast fault clearing
• Improves system stability

Typical Protection Methods

• Differential protection schemes
• Frame leakage protection
• High impedance protection

Relevant Standards

• IEC 60255 – Protection Relays
• IEEE C37 – Busbar Protection Systems

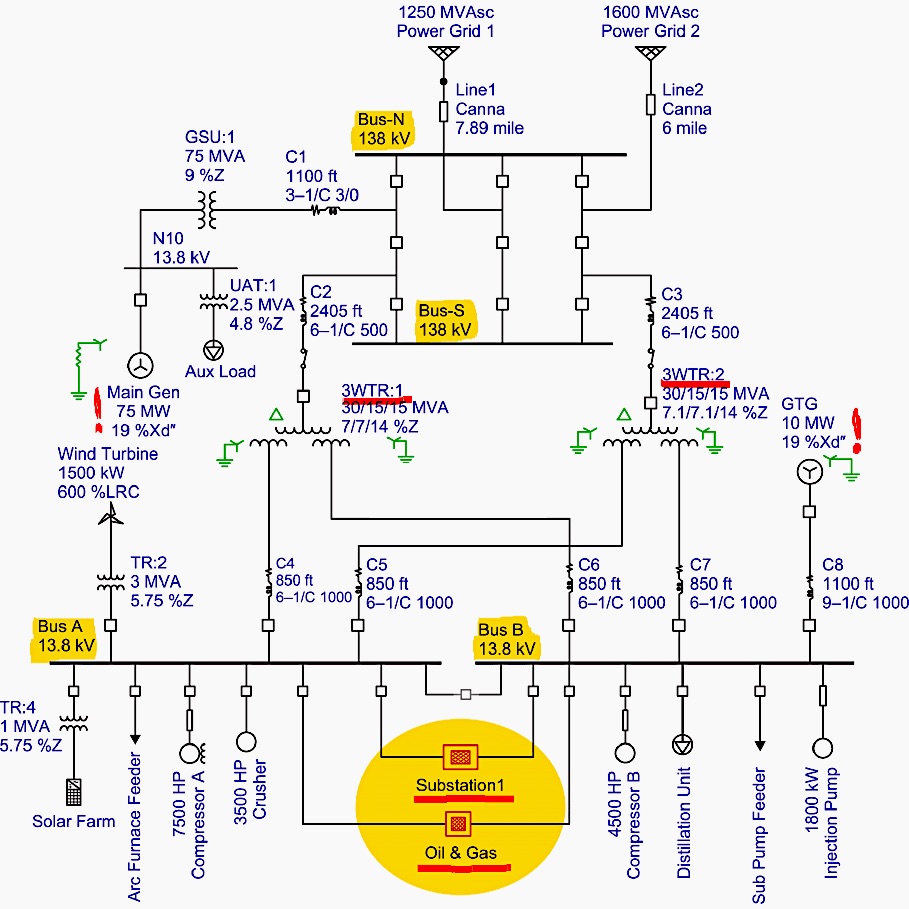

Power System Load Flow Study

Author: Md. Rabiul Hasan Mazumder | April 3, 2026

Load flow analysis is one of the most fundamental studies in power system engineering. It calculates voltage levels, power flows and system losses under steady-state operating conditions.

Objectives of Load Flow Study

• Evaluate voltage profile of the network
• Determine real and reactive power flows
• Identify overloaded equipment
• Assess system performance

Typical Study Steps

• Collect system data
• Create power system model
• Perform load flow calculation
• Analyze voltage and loading results

Relevant Standards

• IEC 60909 – Power System Analysis
• IEEE Power System Analysis Guides

Transformer Oil in Power Transformers: Functions, Types and Properties

Author: Md. Rabiul Hasan Mazumder | March 28, 2026

Transformer oil, also known as insulating oil, is used in oil-filled power transformers to provide electrical insulation and cooling. The oil has high dielectric strength, excellent thermal conductivity and good chemical stability at elevated temperature.

Functions of Transformer Oil

• Provides electrical insulation between transformer windings.
• Acts as a cooling medium by transferring heat from windings to transformer tank and radiators.
• Suppresses corona discharge and electrical arcing.
• Protects cellulose insulation from oxidation.

Types of Transformer Oil

Historically two major types of transformer oil were used in electrical equipment:

• Polychlorinated Biphenyl (PCB) Oil – Previously used because of its non-flammable nature, but later banned due to environmental hazards.
• Mineral Transformer Oil – The most widely used insulating oil in modern transformers.

Mineral transformer oil can be categorized as:

• Paraffinic based oil
• Naphthenic based oil

Important Properties

• High dielectric strength
• Low viscosity
• High flash point
• Low moisture content
• High oxidation stability

Relevant Standards

• IEC 60296 – Fluids for Electrotechnical Applications
• ASTM D3487 – Standard Specification for Mineral Insulating Oil
• IEEE C57.106 – Guide for Acceptance and Maintenance of Insulating Oil
